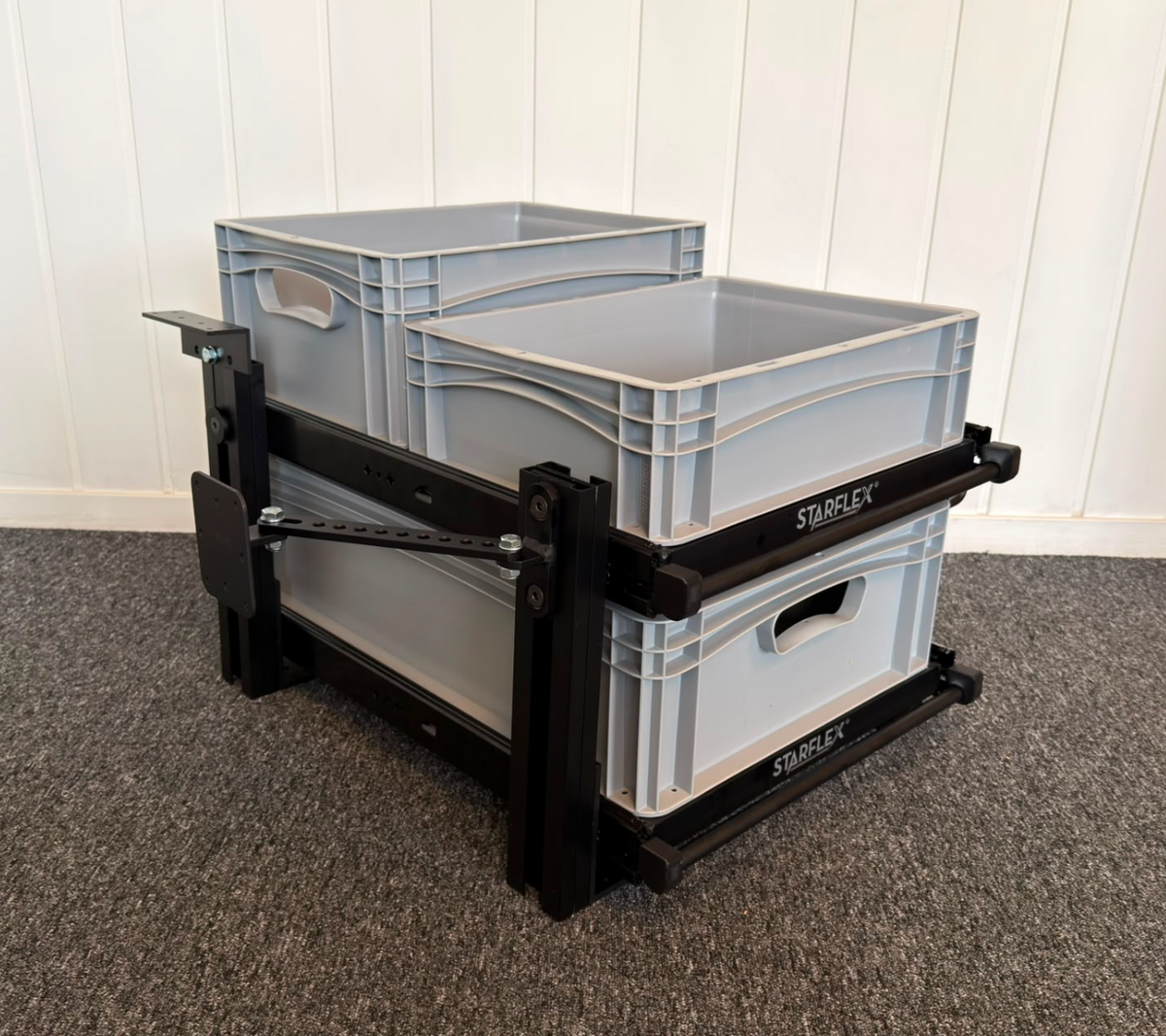

Euroslider - Vertical Rail Set

£107.90

Height 21cm 34cm 66cm 99cm 115cm

Create a fully customised Euroslider setup with the Vertical Rail Set, allowing you to build from 1 to 5 levels and combine multiple rows. Designed for smooth, stepless height adjustment and secure mounting, it is fully compatible with all Starflex Euroslider systems.

Product description

The Vertical Rail Set for Euroslider is designed to expand your Euroslider system vertically and create multiple rows side by side, helping you make the most of available space in motorhomes, campervans, vans and technical installations.

The system allows you to build from 1 to 5 levels, creating a stable and professional storage solution tailored to your needs. Compatible with all Starflex Euroslider models, it offers a flexible and scalable way to customise your setup as requirements change.

Please note: this is an add-on system. Euroslider units are sold separately.

The solution in practice

Vertical rails can be mounted directly to the side wall using the included wall brackets, with an adjustable distance of 0 to 35 cm from the wall. Alternatively, they can be installed between the floor and ceiling to create a self-supporting structure.

The rail set is also ideal when the Euroslider needs to be raised above an edge or threshold, allowing the system to be lifted to the required height for smooth movement and correct operation.

Euroslider frames can be mounted from 6 mm above the floor (measured from the floor to the bottom edge of the frame), or freely from 40 mm and upwards. Due to the construction and space required for the sliding nuts, mounting between 6 mm and 40 mm is not possible. Height can be adjusted continuously within the range of the rail system for maximum flexibility.

Differences between the variants

All Vertical Rail Sets, except the 115 cm version, are supplied with two sets of wall brackets, allowing installation 0 to 35 cm from the side wall.

The 115 cm variant is specifically designed for installation between the floor and ceiling and therefore includes four sets of ceiling mounts instead of wall brackets. This version is ideal where a fixed, self-supporting floor-to-ceiling construction is preferred without the need for side wall mounting.

Flexibility and expansion

The Vertical Rail Set is designed to make it easy to build multiple Euroslider systems side by side, allowing for a highly flexible and customised setup. Different depths can also be combined within the same system, for example 2 x 40 × 60 cm and 1 x 40 × 120 cm Eurosliders.

When combining different depths, two sets of Vertical Rail Sets are required to ensure correct stability.

For even greater flexibility, the vertical rails can be replaced with Starflex Modular Rails if integration with the modular rail system is preferred. It is also possible to mount a plate on top of the system to create a stable surface, using floor and ceiling mounting with modular rails.
